- Item# SO92CW25
Product parameters

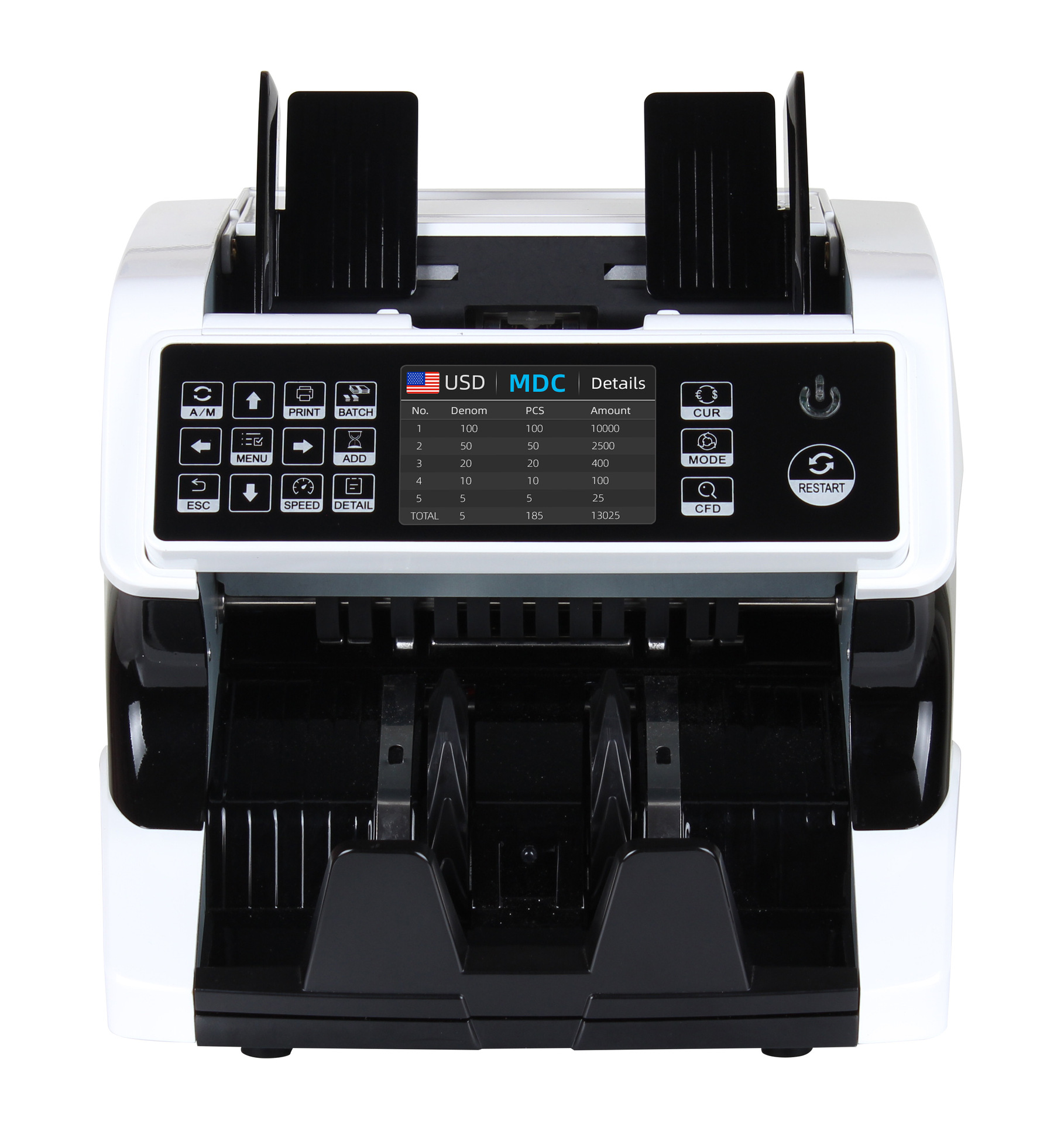

Product Name: multi national currency counter (with total function)
Note feeding capacity: 500
Inner box size: 260x230x240mm
Power supply: AC 100-240V 50-60Hz
Counting size: 50x110-90x190 mm
Counting thickness: 0.075-0.15mm
Net weight: 6.5kg
Power consumption: ≤ 80W
Gross weight: 7.5kg
Gross weight: 15kg (2 pieces)
Outer box size: 620 * 380 * 315mm

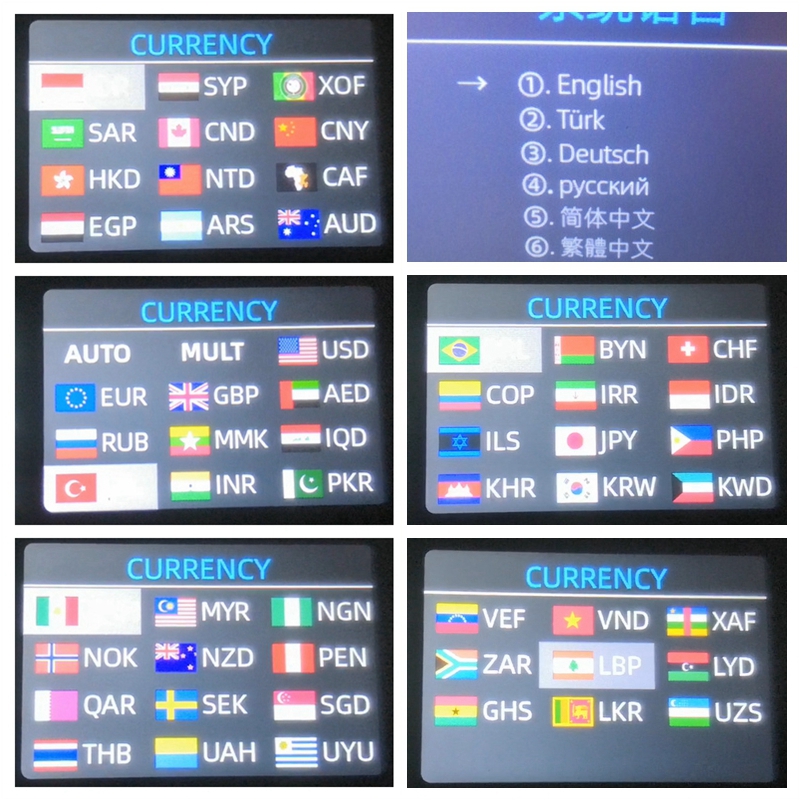

Available currency options for serial number reading: USD, EUR, GBP, rub, CHF, THB, CAD, HKD, JPY, SGD, IDR, MXD, AED Up to 60 currencies
Interface: RS-232, USB, SD card
Large TFT screen, which can display the number of sheets, total the total amount, and sort out the number of sheets of each denomination
*Features: multi currency vertical machine
Automatically identify country currency
Identification method: the built-in double CIS image tube adopts the CIS image sensor with a resolution of 200dpi to scan, analyze and process the image characteristics of ultraviolet image, infrared image, white light image and multispectral image at the speed of 35 million pixels / s, so as to effectively identify the mechanism counterfeit money and altered counterfeit money in circulation. Crown size recognition, image, magnetism, infrared, ultraviolet, etc.

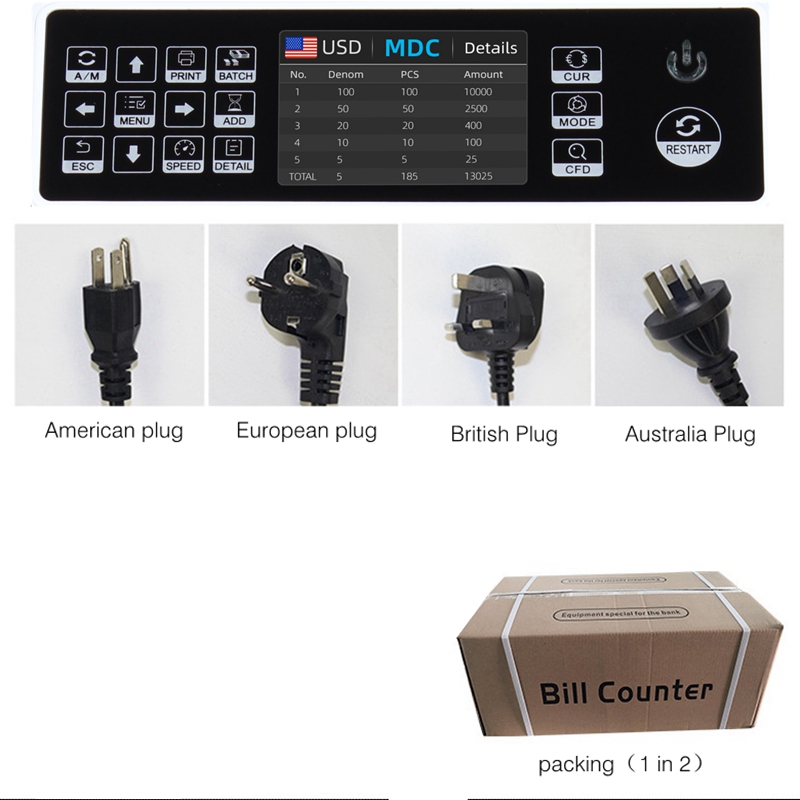

Machine panel introduction
Button MODE:Choose CNT mode (Count), SDC mode (Single Denomination Count) & MDC mode (Mixed Denomination Count).
Button CFD: Choose different Counterfeit Detection Sensitivity level
Button CUR: Show up the available currency names in your machine and press corresponding numeric button to select the currency you want.
Button BATCH: Switch on/off batch mode.
Button PRINT: When your value counter is connected with a printer, then in REPORT mode (press DETAIL to get in), press this PRINT button to print out the detail.
Button A/M：Choose Auto or Manual Start
Button ADD: The default function is to switch on/off ADD function
Button SPEED: The default function is to select different available counting speeds.
Button↑→ ↓←:When BATCH is on, then use ↑→ ↓←buttons to input the batch number. And in Menu to choose currency type.
Button menu: Enter in to Menu while in main interface,Password is 9999.
Button ESC: The default function is to clear the input or back to upper level.
Button RESTART: This button is used to start counting, or back to upper level in MENU.
